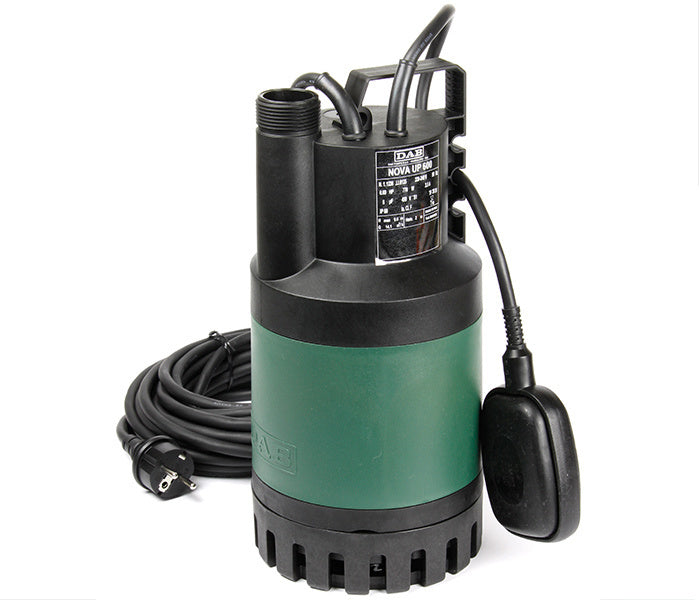

Grundfos DAB Nova 600 Composite Body Submersible Pump 0.55kW (CLP*)

Pump body, impeller, cap and suction grid in technopolymer.
Motor, rotor shaft and screws in stainless steel.
Triple O-ring seal interposed with an oil precombustion chamber.
Continuous duty submersible asynchronous motor.
Stator fitted in an airtight stainless steel casing.
Rotor mounted on overdimensioned, greased-for-life ball bearings.
Built-in thermal and current overload protection and a capacitor permanently on
in the single-phase version. For the protection of the three-phase motor it is advisable
to use a suitable overload protection complying with the regulations in force.
Supplied with standard power cables for the single-phase version:
5 metres HO5RN-F cable for: NOVA 180 M-A NOVA 300 M-A
NOVA 600 M-A FEKA 600 M-A
10 metres HO5RN-F cable for: NOVA 180 M-NA NOVA 200 M-NA
10 metres HO7RN-F cable for: NOVA 600 M-NA FEKA 600 M-NA
Standard cables supplied for the three-phase version: 5 metres of HO7RN-F cable.
For the single phase the standard is a SCHUKO plug EEC VII.

Suitable for:

• Water treatment - Commercial buildings
• Domestic wastewater
• Industrial wastewater
